Cyrus 8vs

    Date Acquired: May 2025
    Date Disassembled: May 2025
    Date Documented: May 2025

Overview

From the mid 2000s, this 5.6 kg (12.4 lbs) device is a stereo speaker amplifier, able to power each channel with 70 W (into 8 Ω) or 110 W (into 4 Ω). It's compact, reasonably lighter given its construction and a fairly elegant design.

At the time, the Cyrus 8-series also included the CD8x CD player and PSX-R external power supply, both sharing the distinctive half-width form factor and minimalist design of the 8vs. The PSR-X was an optional upgrade for the 8vs which was designed to reduce electrical noise by supplying power to the preamplifier stage independently of the amplifier's internal power supply - both units remained connected to the mains, and the PSX-R did not increase the amplifier's rated power output.

Design

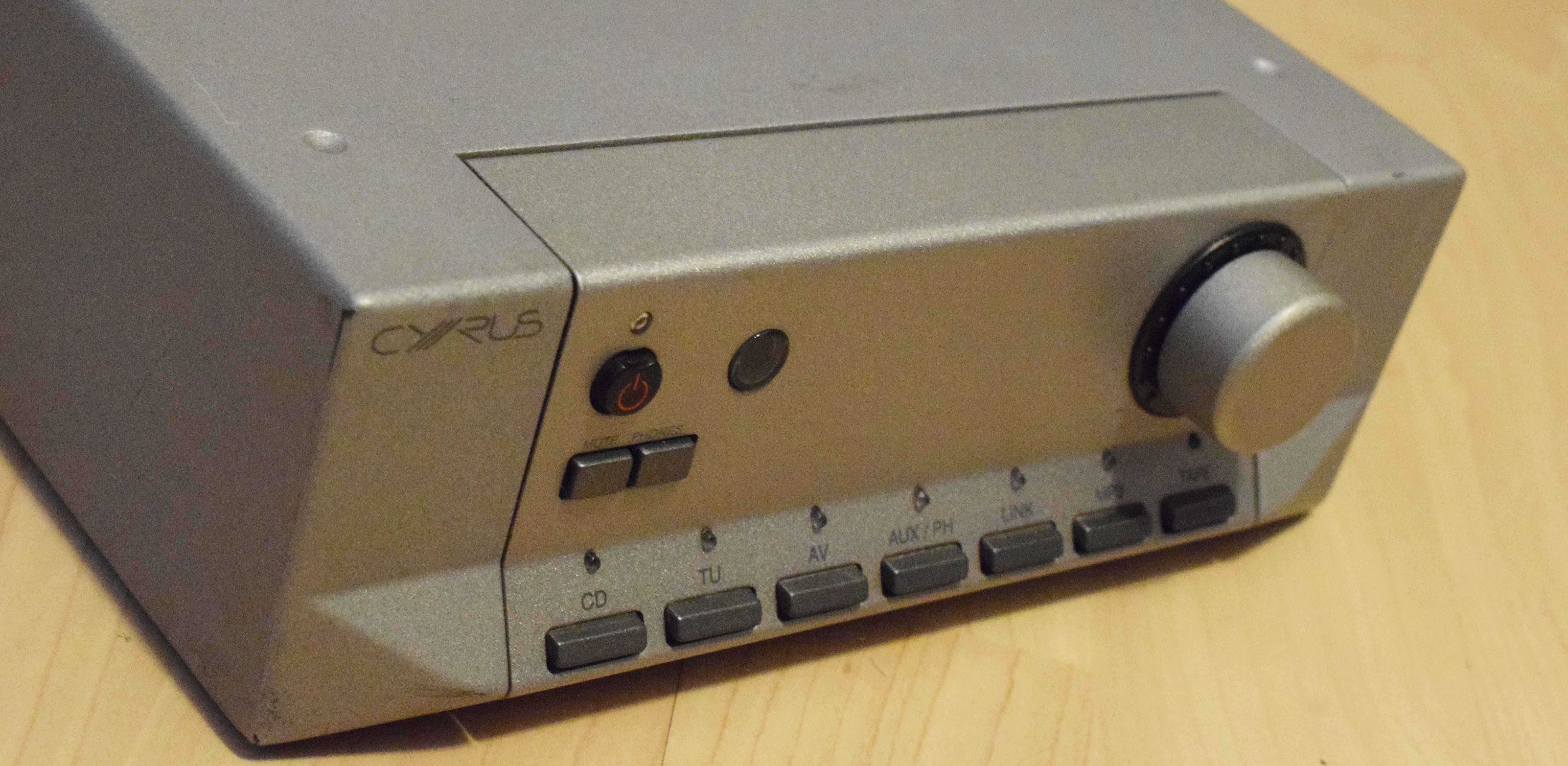

Image of the front showing buttons and dials.
Front

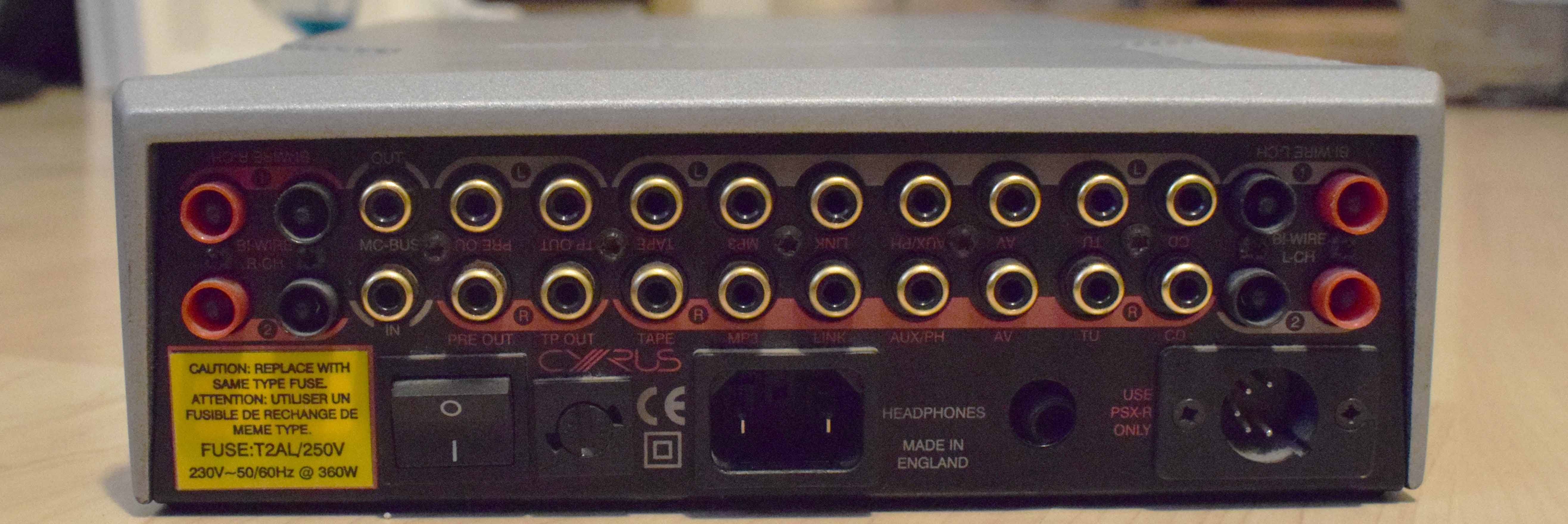

Image of the back showing inputs and output connectors.
Back

Disassembly

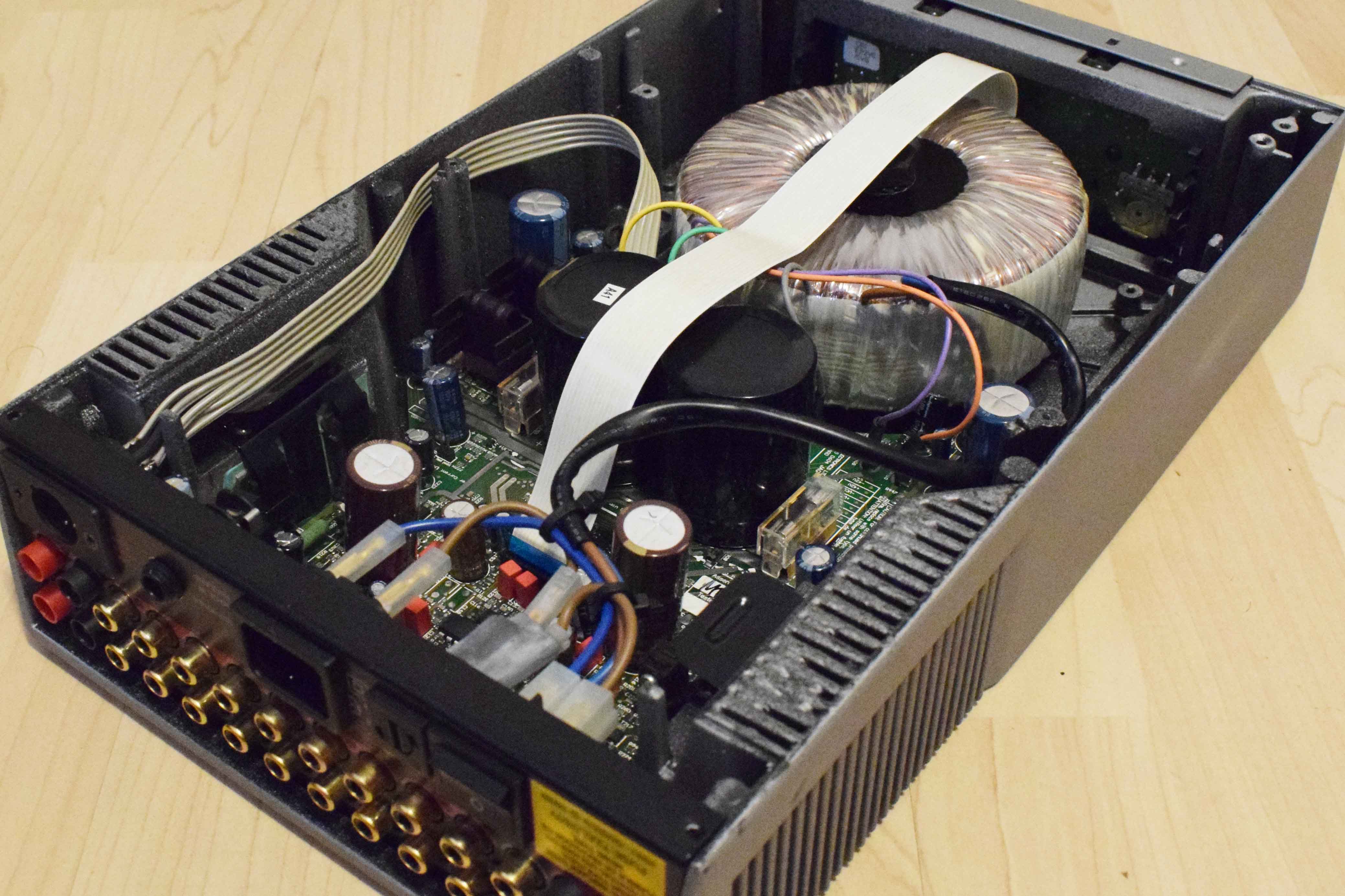

Image of amplifier internals after bottom cover has been removed.
Interior

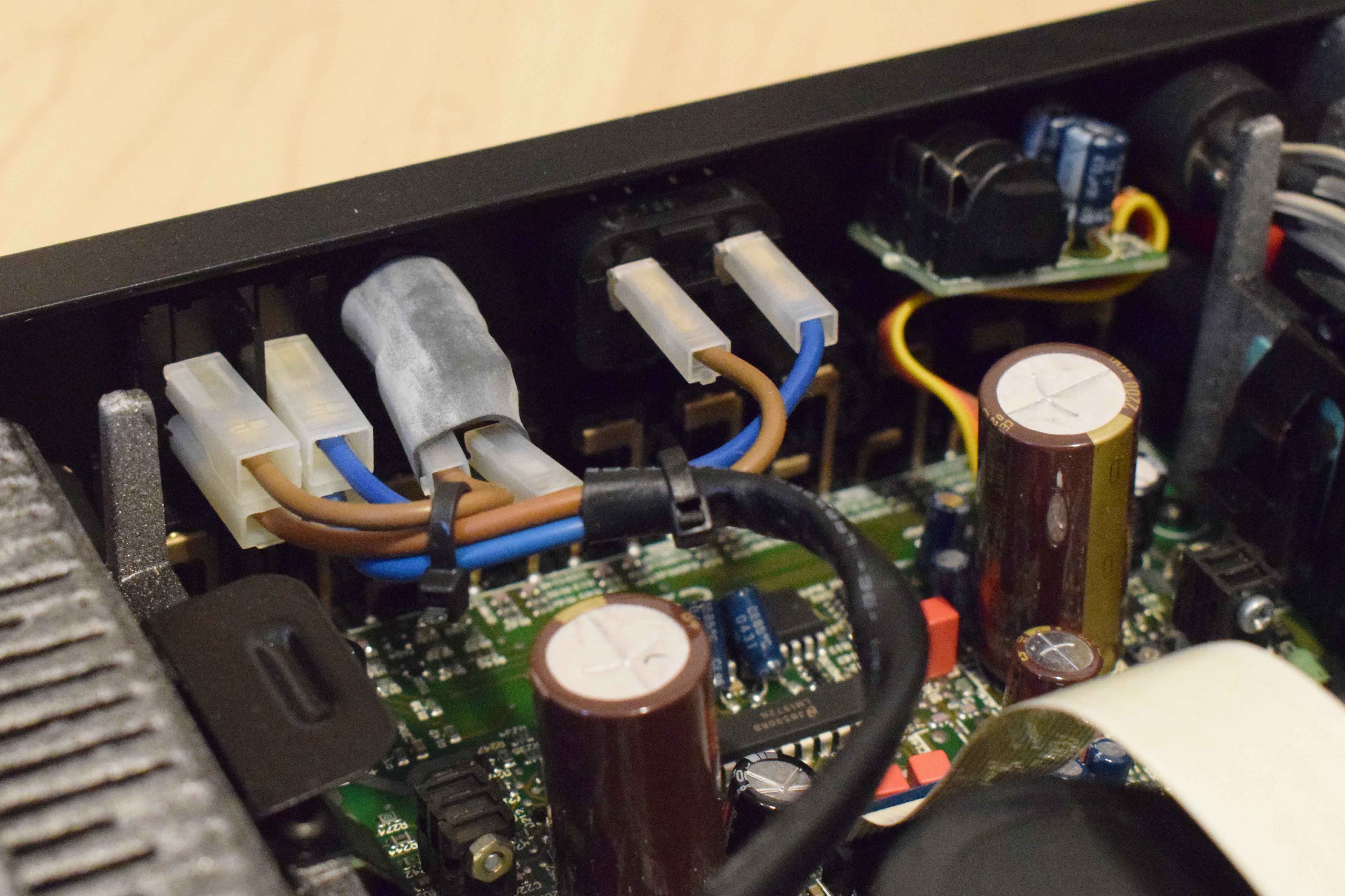

Image of rear connector mounting to case.
Rear Connections

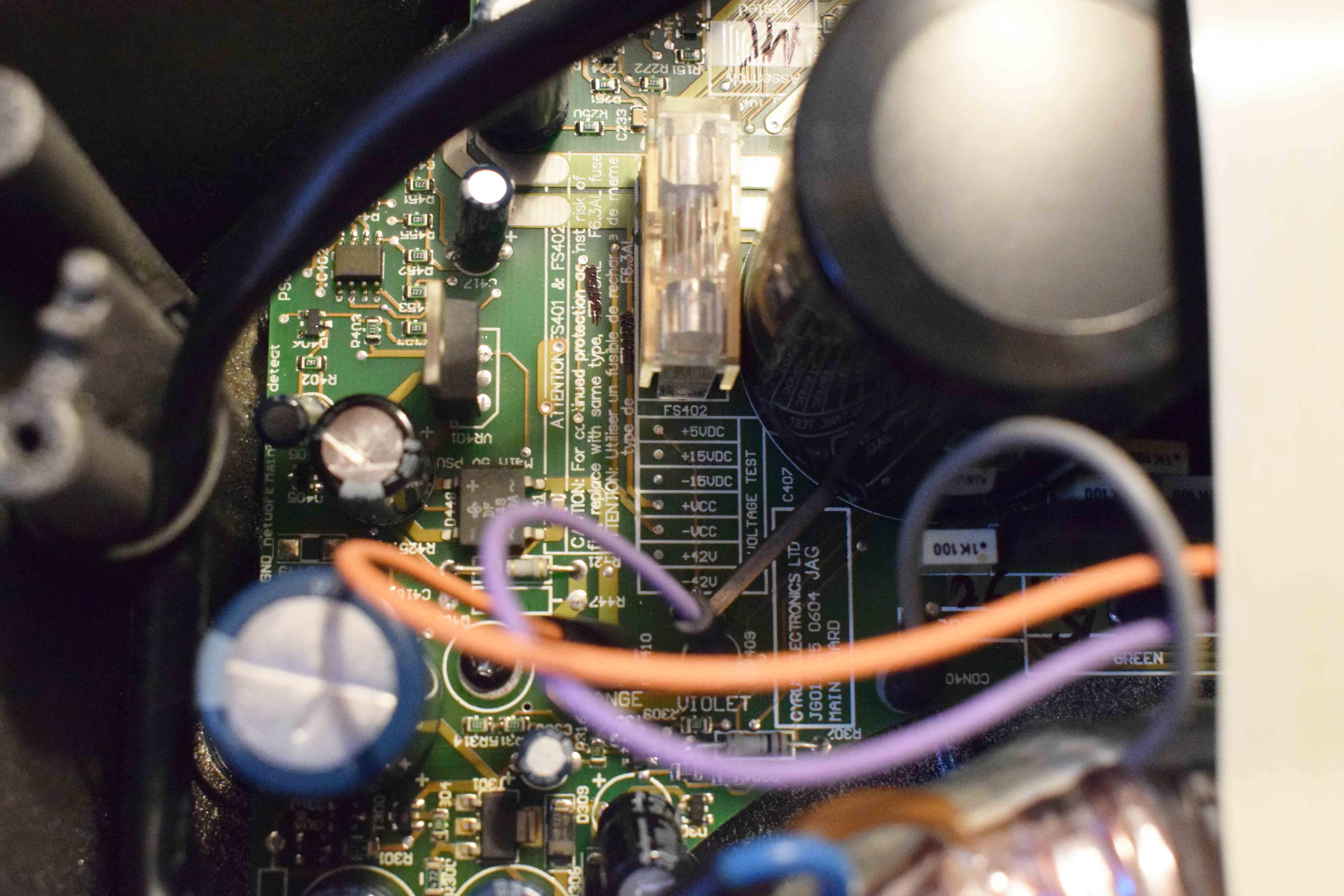

Image of PCB with test points and fuses shown.
Test points & Internal fuses

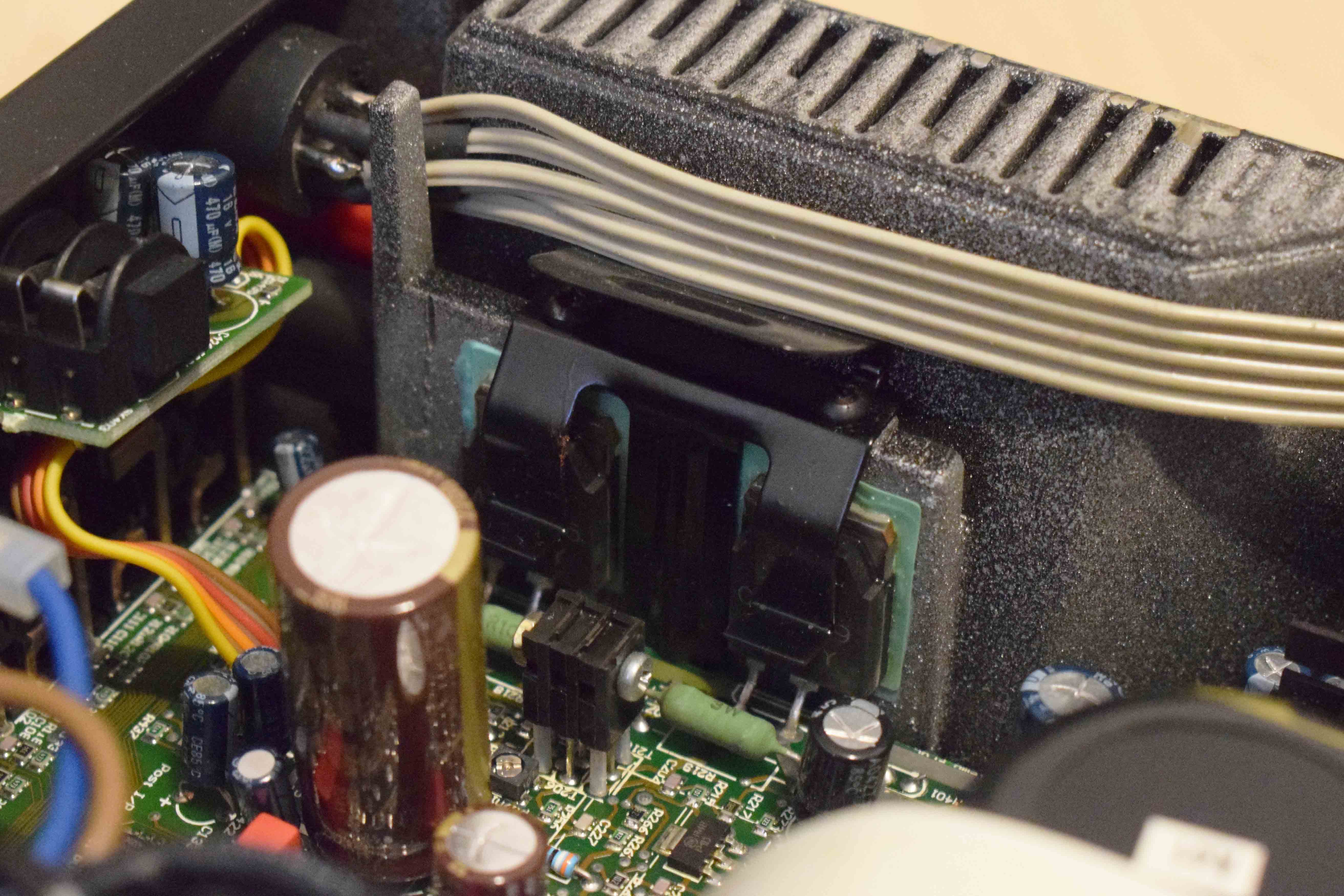

Image of FETs on the wall of case where it is being used as a heatsink.
FETs & Heatsink
